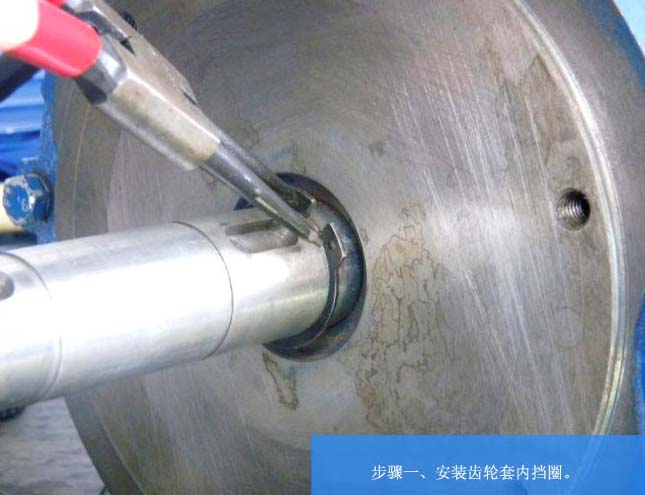

步驟一、安裝齒輪套內擋圈。 Step1:  Install the gear snap ring

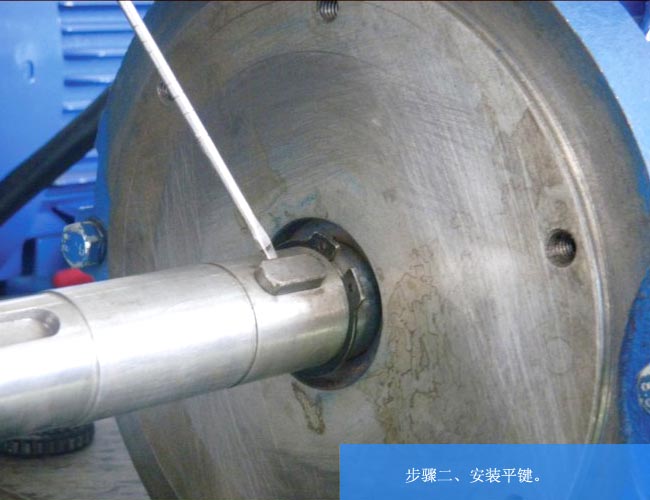

步驟二、安裝平鍵。Step2:  Install the flat key

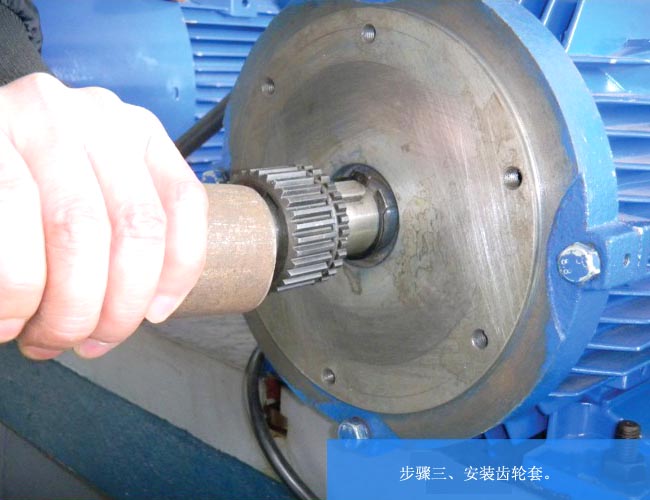

步驟三、安裝齒輪套。Step3:  Install the gear hub

步驟四、安裝齒輪套外擋圈，保證齒輪套無軸向竄動。

Step4:  Install the gear hub of outer snap ring to ensure the gear sleeve without axial movement.

步驟五、安裝制動盤組件，保證其在齒輪套上軸向滑動順暢.
Step5:  Install the brake disc,ensure its axial sliding smoothly on the gear sleeve.

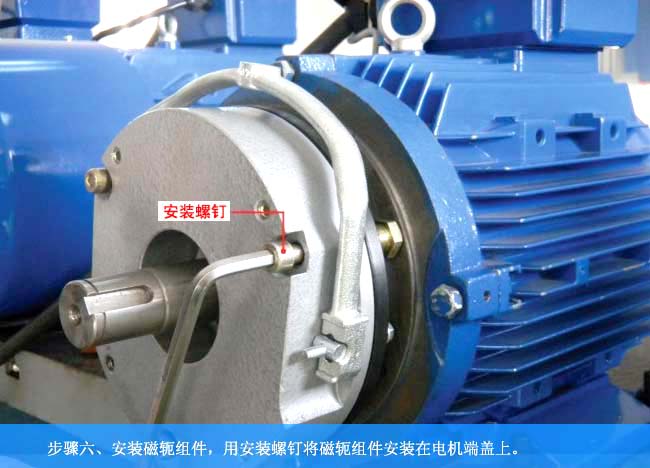

步驟六、安裝磁軛組件，用安裝螺釘將磁軛組件安裝在電機端蓋上。
Step6:  Install the magnetic yoke,use the mounting screw to fix it on the motor side hood.

步驟七、調整氣隙。
1，將所有的空心螺栓旋入磁軛組件，使空心螺栓與電機端蓋留有1-2mm左右間距。
2，將等于正常工作氣隙的塞尺插入制動器的銜鐵和磁軛組件之間，塞尺位置盡量靠近安裝螺釘，適量旋緊安裝螺釘夾住塞尺，以塞尺能自由地從銜鐵與磁軛組件之間的氣隙中插入抽出為宜。
3，其余的安裝螺釘處重復步驟2調整，并保證圓周方向氣隙均勻。調整氣隙完畢
Step7:  Adjust the air gap:
1.Screw all hollow bolts into the magnetic yoke,make it with the motor side hood 1-2mm distance.
2.Insert the rated value feeler gauge between the armature and magnetic yoke,let the feeler gauge closer to the mounting screw,keep them at rated air gap value.
3.As same as this way,screw all mounting screws,adjust the air gap.

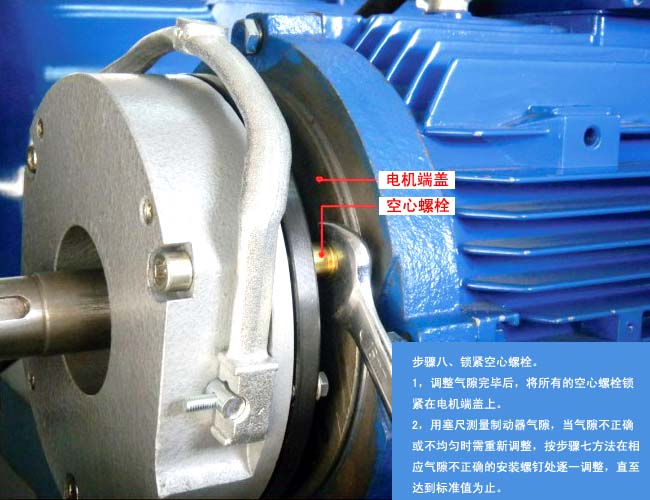

步驟八、鎖緊空心螺栓。
1，調整氣隙完畢后，將所有的空心螺栓鎖緊在電機端蓋上。
2，用塞尺測量制動器氣隙，當氣隙不正確或不均勻時需重新調整，按步驟七方法在相應氣隙不正確的安裝螺釘處逐一調整，直至達到標準值為止。
Step8:  Fix the hollow bolt tightly:
1.After the air gap adjustment,lock the hollow bolt on the motor side hood tightly.
2.Use the feeler gauge to measure the air gap and make sure it in rated value.

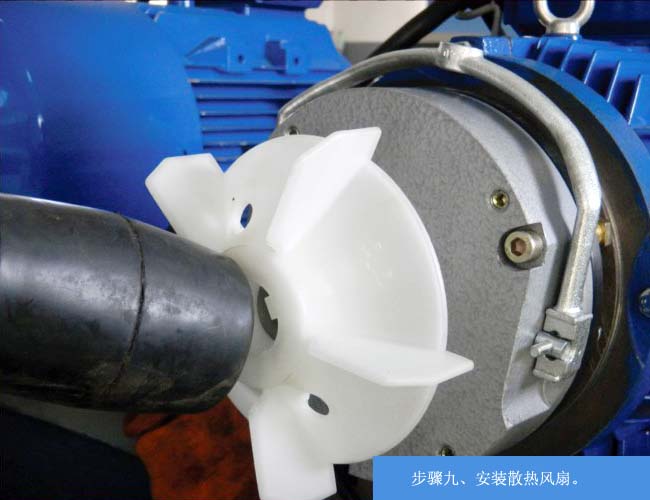

步驟九、安裝散熱風扇。
 Step9:  Install the cooling fan.

步驟十、安裝風扇擋圈。
Step10:  Install the fan snap ring.

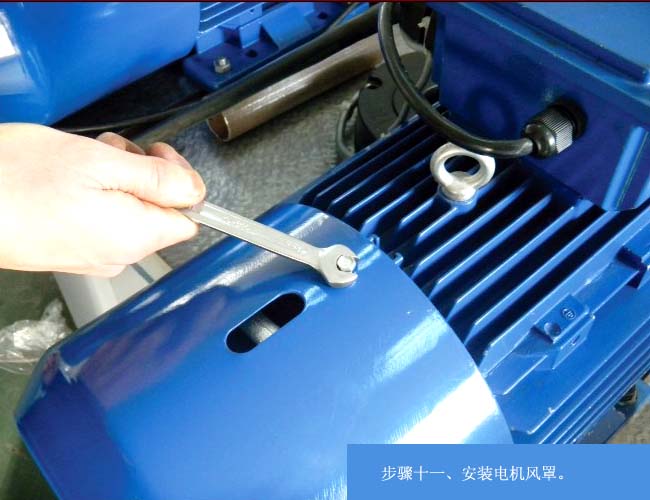

步驟十一、安裝電機風罩。
Step11:  Install the motor wind shield.

步驟十二、安裝釋放手柄。
Step12:  Install the manual release lever.
